The upcoming Euro-7 standard poses new challenges for the automobile industry.
Contrary to the previous Euro standards, which focused mainly on CO2 emissions, the Euro-7 standard also regulates brakes and tires, whose particulate emissions are currently higher than those of the internal combustion engine itself.
Conventional brake discs can be changed into wear-reduced and corrision-resistant „low-emission break discs“ by new innovative technologies.

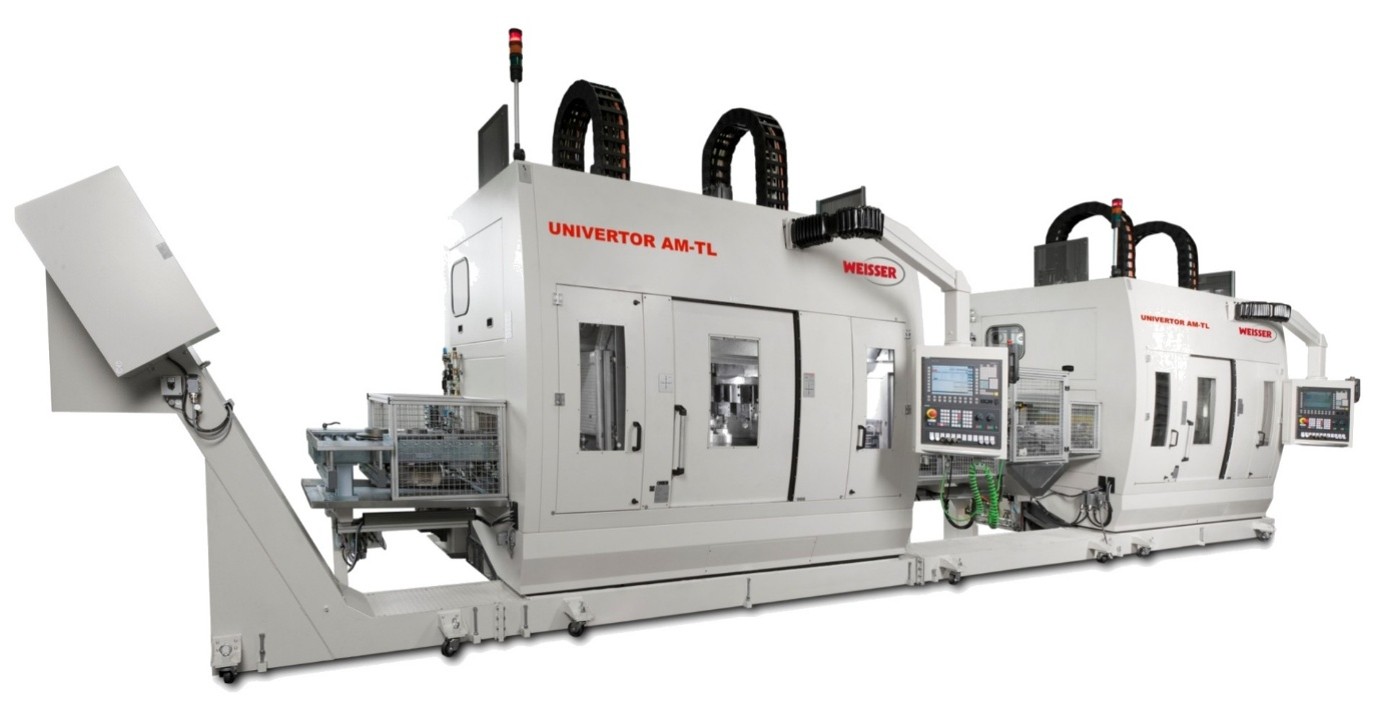

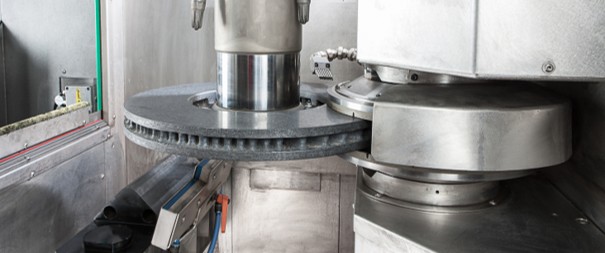

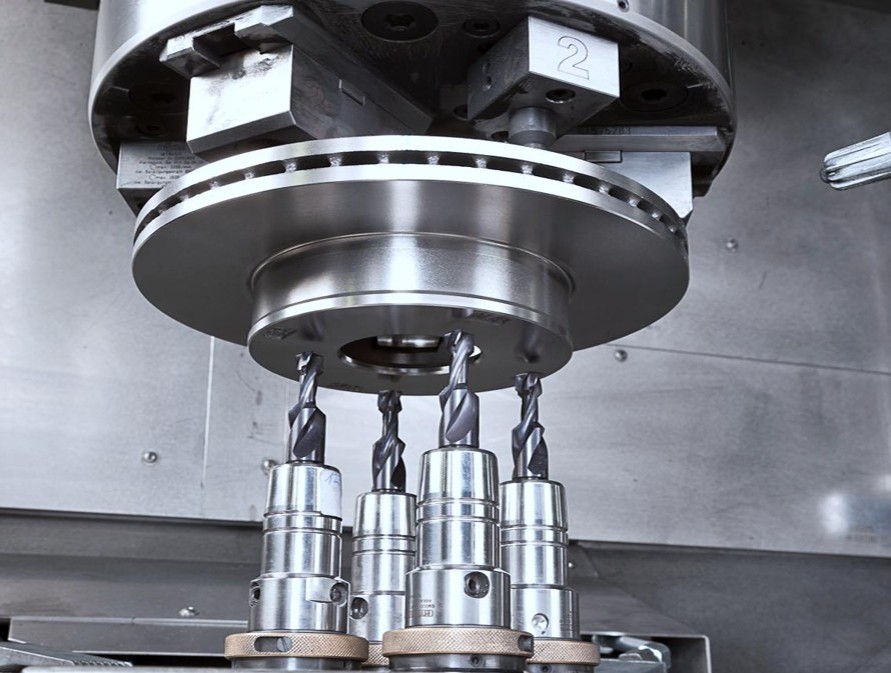

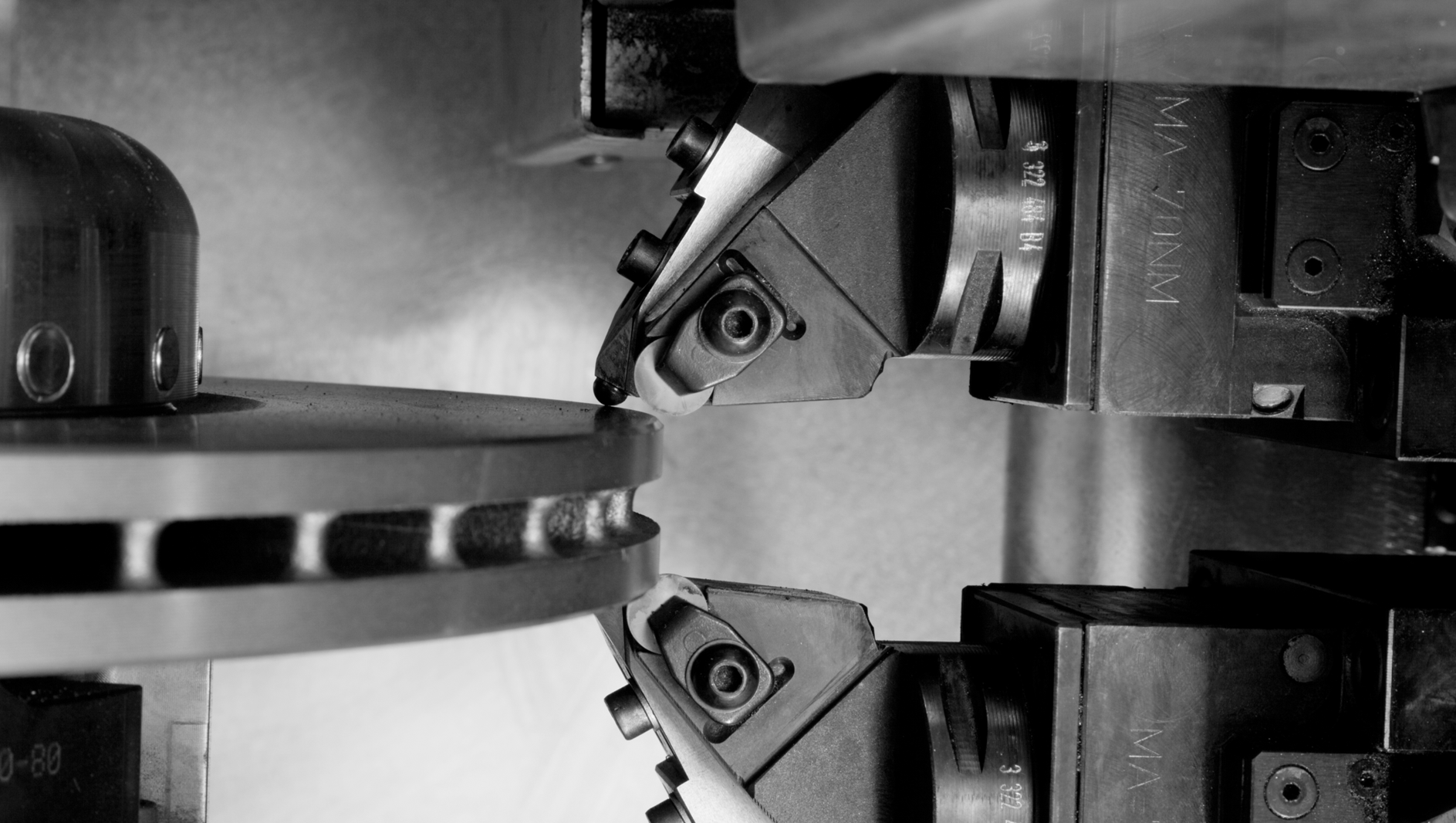

The complete manufacturing solution for high-volume production of the next generation of brake discs with a cost-effective cost-per-part concept.In the process chain, the turning and drilling operations are first carried out on two proven UNIVERTOR AM-Ts. The subsequent laser coating is carried out in two steps, in which first the compound layer and then the carrier layer are applied. The downstream grinding and flat honing processes ensure maximum plane accuracy.
WEISSER relies on the so-called laser cladding, also known as laser buildup welding. In this additive manufacturing process, a material powder is blown through an inert gas into the focus of a laser beam. The powder melts in the inert gas even before it reaches the workpiece, in this case the brake disc, and bonds with the surface, which is also molten.

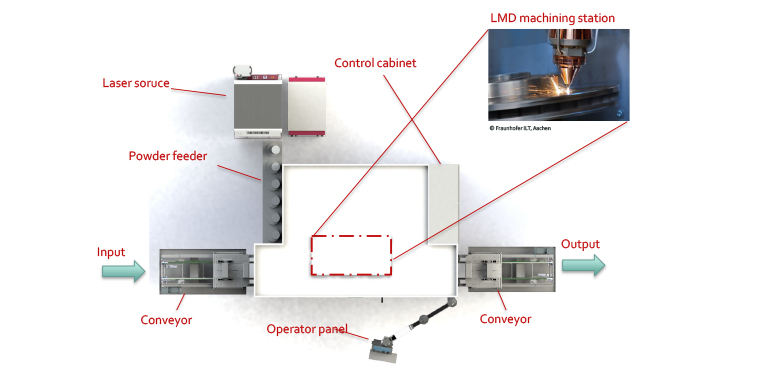

The result is a metallurgically bonded hard coating on the brake disc that complies with the latest emission standards. WEISSER, as a supplier of machines for the machining of brake discs, develops these additional process steps and integrates them into a well thought-out machine concept WEISSER LMD-BD-450 designed for mass production. With this machine concept, the effective laser time is minimized. At the same time, the concept ensures optimal powder utilization and minimizes almost any loss!
